An auto-darkening welding helmet is considered the second most crucial piece of welding equipment after the welder itself. An auto-darkening welding helmet uses an electronic auto-darkening filter (ADF) to automatically change the lens from its light state to a darker welding shade when it detects an arc. The system generally uses arc sensors, electronic controls, liquid-crystal filter layers and a power source. When the sensors detect the intense light produced by an arc, the filter changes to the selected dark shade. Choosing the auto-darkening welding helmet can make a noticeable difference in visibility, comfort and welding accuracy. Constant Ultraviolet (UV) and Infrared (IR) filters block harmful radiation at all times, while rapid darkening prevents photokeratitis (“welder’s flash”) and eye strain. It is allowing you to position your work without repeatedly lifting the helmet. You do not need to lift and lower the hood between welds because they allowing you to inspect the joint, chip slag or reposition safely with both hands free. The best models combine excellent optical clarity, fast switching speed, multiple arc sensors, a useful shade range, comfortable headgear and reliable safety certification. In this guide, we’ll cover the best auto-darkening welding helmets and how to choose the right one for welding.
How to Choose the Right Auto Darkening Welding Helmet?
To select the perfect hood for your needs, evaluate these features:
Optical Clarity:Look for a 1/1/1/1 optical class rating (evaluating optical quality, diffusion, variation in luminous transmittance and angle dependence). This ensures distortion-free and true-color visibility of the weld puddle and steel.
Number of Arc Sensors:2 sensors are fine for direct-view hobbyist work, MIG or stick welding where the arc is always in plain sight and 4 sensors are recommended for industrial, out-of-position, or TIG welding (especially low-amperage pulse TIG) where hand or body positions might block a single sensor.
Shade Range:Most auto-darkening lenses offer a light state of #3 or #4 (like sunglasses) so you can see clearly before striking the arc. The dark state typically spans #9 to #13 to match different welding processes and amperages (MIG, TIG, or Stick).
Switching Time:Choose a fast switching speed between 1/20,000 and 1/30,000 of a second (or ≤ 0.1 ms). Faster speeds protect your eyes from flash and reduce strain during long sessions.
Sesiticity and Delay Controls:Sensitivity controls let you adjust how easily the lens reacts to ambient light or lower-amperage arcs. Delay controls dictate how quickly the lens clears back to a light state after the arc stops.
View Area Size:Larger viewing windows improve peripheral awareness and compact windows keep the overall weight of the helmet lower to reduce neck fatigue.
Power Source:Most modern auto-darkening helmets run on a combination of solar panels and replaceable batteries (like CR2450 coin cells) for long-term reliability.
Safety Verification:Verify that the helmet meets recognized safety standards like ANSI Z87.1 (US) or EN379 (EU).
List of Must-Have Auto Darkening Welding Helmets?
Here is the list of top rated auto darkening welding helmets:
1. YESWELDER Auto Darkening Welding Helmet:
See more of the weld puddle, joint edges and work position through a wide 3.93″ x 3.66″ viewing area. The 1/1/1/1 true-color optical clarity provides a clearer, more natural view than traditional green-tinted lenses by helping support better visibility for detailed welding, fabrication and garage projects. Adjustable DIN 3/5-9 and 9-13 shade settings give you flexible switch between multiple processes with one helmet. Powered by an accessible CR2450 lithium battery and designed to keep setup and routine maintenance simple.
2. TOOLIUM Auto Darkening for TIG,MIG,ARC with Light:
Do not waste time taking your helmet off between tasks. With the convenient external control knob, you can easily switch into Grind Mode right on the fly with your gloves on. Offering a wide shade range of DIN 3.5/9-13, this versatile helmet adapts instantly to TIG, MIG, MMA (Stick) and plasma cutting by keeping your workflow smooth and uninterrupted.
3. Lincoln Electric K3034-4 Viking 3350:
4C Lens technology and perfect 1/1/1/1 optical clarity eliminate imperfections and color saturation to create the clearest view of the base material, arc and puddle. This rating is determined by measuring blurriness, distortion, shade consistency and angle uniformity of the auto-darkening welding lens. The 12.5 square inch auto darkening lens provides a large field of view to increase versatility and operator control.
4. Miller Classic Series Auto Darkening:
Auto-darkening welding helmet with 6-square-inch viewing area. It features clear light lens technology for high-definition optics. It is perfect for welding at five amps or below. Auto-darkening helmet with Clear Light Lens Technology provides weld shades 8-13, cut shades 5-8 and grind shade 3. Two arc sensors with 1/23,000 second switching speed; Ideal for precision welding tasks. Welding gear meets ANSI Z87.1+, CSA and CE standards. 3.0 light state allows keeping hood down between welds and improves productivity and safety. Three-year warranty included.
5. Sessi Auto Darkening Welding Helmet:
1/1/1/1 optical clarity with a 3.66”x1.69” view restores natural color. Track weld pools, spot imperfections and reduce eye strain for cleaner welds every time. Two arc sensors trigger in 1/25,000s with a blue light blocking lens that reduces harmful high-energy blue light exposure during welding. The arc strikes, the lens darkens your eyes stay safe and comfortable no questions asked. Solar panel with CR2450 backup keeps you going. It meets ANSI Z87.1 standards professional safety you can trust.

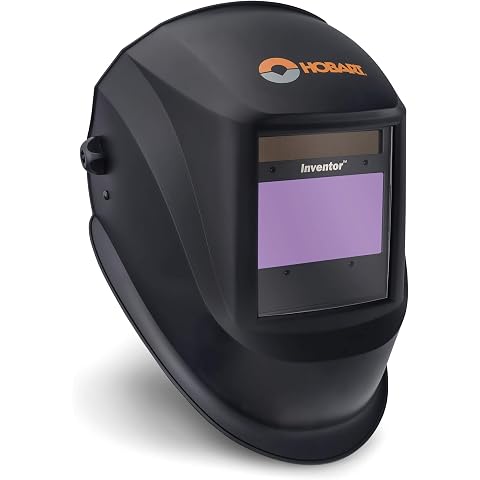

6. Hobart 770890 Auto Darkening Welding Helmet:
Get continuous UV & IR protection with our Hobart 77890 Inventor Auto Darkening Welding Helmets for men & women. It engineered for your safety with an auto-on/off power control that triggers the lens at the strike of an arc. Streamline your workflow with our Hobart welding helmet to boost your productivity. Seamlessly switch from Weld to Grind mode to prevent your lens from darkening for clear & visible grinding without needing to change helmets.
7. ANDELI Auto Darkening Welding Helmet:
ANDELI auto darkening welding helmets with lights will help you enhance visibility in dark. Coming with 2 LED lights, this welding helmet for men can reach up to 400lumens, reducing shadows, improve precision and ensure optimal eye protection across varying welding conditions. It also added motion sensor mode, you can easily turn the lights ON or OFF by waving your hand, which is more convenient and avoids soiling the welding helmets when your hands are dirty. It is equipped with 6 premium sensors, the helmet switches from light to dark in an impressive 1/30000 seconds by protecting your eyes from harmful rays during welding operations.

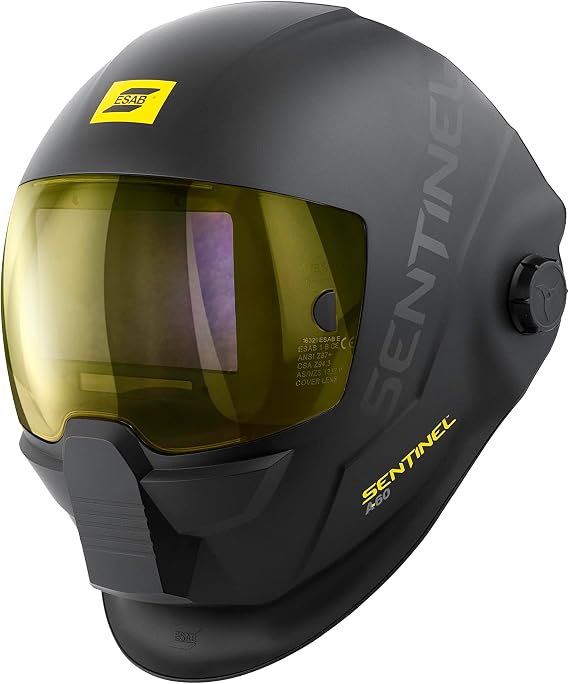

8. ESAB Sentinal A60 Auto Darkening Welding Helmet:
ADF viewing area (4.65 x 2.80 in) and intuitive internal ADF controls including sensitivity and delay. DIN 3/5–13, adjustable in 0.5 increments and ADF a shade lock setting. ESAB OpTCS True Color Lens Technol and fast switching time of 0.08 millisecond. It has fast switching time of 0.08 millisecond.
Final Verdict:
A well-chosen auto-darkening helmet isn’t just another welding accessory, it is one of the most important pieces of equipment between you and the welding arc. Most importantly, don’t choose a helmet based only on price or switching speed. Look for appropriate safety certification, excellent optical clarity, a suitable shade range, reliable sensors, comfortable headgear and a viewing area that matches your work. Invest in these mentioned best auto darkening welding helmets with best features that last longer.
FAQs
1. What Is the Best Auto-Darkening Welding Helmet?
The Lincoln Electric VIKING 3350 is one of the strongest choices because of its 1/1/1/1 optical rating, large viewing area, four sensors and broad shade range.
2. Is a 1/1/1/1 Welding Helmet Better?
A 1/1/1/1 optical classification indicates the highest rating in each of the four EN 379 optical categories.
3. How Long Do Auto-Darkening Welding Helmets Last?
A good helmet can last for years when properly maintained. Its lifespan depends on usage, exposure to heat and spatter, battery condition, lens damage and the quality of the headgear and electronics.
4. Is shade 10 or 11 better for welding?
Neither shade 10 nor shade 11 is universally better the right choice depends entirely on your welding process, amperage and personal visibility needs.
5. What is the correct setting for an auto-darkening welding helmet?
An auto-darkening welding helmet requires adjusting three core controls Lens Shade Numbers, sensitivity and delay to balance eye safety with clear visibility of the weld puddle.
